By-wire Product

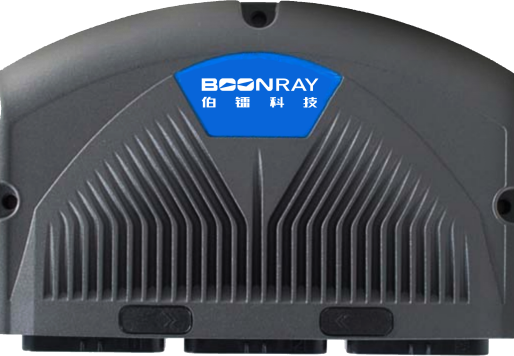

Boonray BCM100

Boonray BCM100 is a powerful body control unit. It has a 32-bit processor and high-efficiency computing power, which can receive vehicle control commands, and convert input and output analog quantities and switch quantities to accurately control the functions of the vehicle's components.

Functional Advantage
  • Floating-point

    32-BIT Floating-point

    32-bit processor cooperates with floating-point arithmetic to complete high-performance applications.

  • Multi-function

    As a multifunctional control unit to connect different sensors and actuators in the control system.

  • I/O Interface For Autonomous Driving In Mining Areas

    There are 65 I/O pins, each with alternate and short-circuit protection function.
  • 环境的控制逻辑

    Control Logic With The Complex Environment Of The Mining Area

    Improve the redundancy guarantee of trucks to ensure the driving safety in the harsh environment.
Preparation Parameters

  • Processor

    32-bit CPU, 128 MHz

  • Reference Voltage

    +5 V, +10 V

  • Software Download

    CAN1 or Ethernet

  • PC

    P67

  • Size

    224.8 x 148.5 x 50 mm 8.819 x 5.827 x 1.969 inch

  • Weight

    0,95 kg 2.09 lbs

  • Shell Material

    Aluminium / Plastic

  • Working Temperature

    -40... +85°C -40...+185°F

  • Storage Temperature

    -40... +85°C -40...+185°F

  • Connector

    3 x AMP35

  • Communication / Interface

    4 x CAN 2.0 B 1 x Ethernet

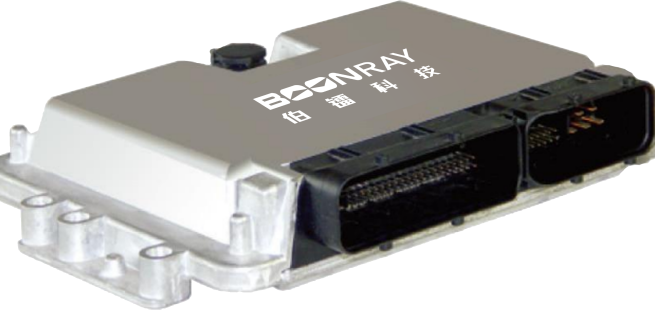

Boonray PDC100

It is a wire-controlled domain controller for new energy pure electric mining trucks. It can    perform environmental perception, fusion processing, path planning and intelligent decision-making for various sensors of autonomous driving in mining areas, to realize the diagnosis and treatment of truck faults.

Functional Advantage
  • 开发的软件

    Autonomous Driving Development Software

    For the complex scene of autonomous driving, the independently developed by-wire chassis domain controller software can execute the control instructions of the computer and realize redundant protection.
  • 和稳定性

    Higher Reliability And Stability

    The development of the controller and the selection of components meet the requirements of vehicle, and have passed the certification of relevant EMC regulations.
  • 驾驶的I/O接口

    I/O Interface For Autonomous Driving In Mining Areas

    64 I/O pins, all output ports have fault diagnostics
  • 软件开发

    Model-based software development

    The control strategy of PDC is based on model development, which shortens the development cycle, is easy to maintain, and is more suitable for the individual needs of autonomous driving.
Preparation Parameters

  • Operating Voltage

    DC 12/24V (9~32V)

  • Working Temperature

    -40℃~85℃

  • Working Humidity

    0~95%，No condensation

  • Storage Temperature

    -40℃~85℃

  • Static Current

    >1mA

  • Rated Power Consumption

    3W

  • PC

    IP67

  • Weight

    <700g

  • Size

    207×150×42mm

  • Material

    Die-cast aluminum

  • Outer Casing

    Equipped with waterproof ventilating valve, good heat dissipation
